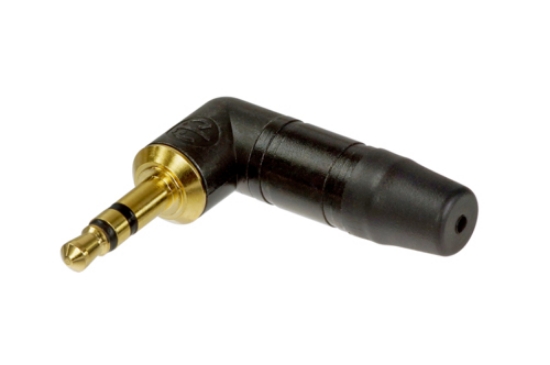

NEUTRIK NTP3RC-B 3,5mm Tiny Plug, 3 poli maschio, angolare

Si tratta dela prima recensione per questo prodotto
Produttore: Neutrik
Cod.: NTP3RCB
Codice articolo produttore: NENTP3RC-B
Product
Title NTP3RC-B
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1 kVdc
Insulation resistance > 2 GΩ (initial)
Rated voltage <50 V
Mechanical
Cable O.D. 2 - 4.5 mm
Wiresize 0,22 mm²
Wiresize 24 AWG
Wiring Solder contacts
Material
Bushing Brass (CuZn39Pb3) + PU, black Cr
Contact plating 0.2 µm Au
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 15 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Polyacetal (POM)
Environmental
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +65 °C
€6,00
increase decrease
Disponibilità: Disponibile
Data di spedizione: 1-2 giorni
Spedire a
*
*
Metodo di spedizione
Nome
Consegna stimata
Prezzo
Nessuna opzione di spedizione
Product
Title NTP3RC-B
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1 kVdc
Insulation resistance > 2 GΩ (initial)
Rated voltage <50 V
Mechanical
Cable O.D. 2 - 4.5 mm
Wiresize 0,22 mm²
Wiresize 24 AWG
Wiring Solder contacts
Material
Bushing Brass (CuZn39Pb3) + PU, black Cr
Contact plating 0.2 µm Au
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 15 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Polyacetal (POM)
Environmental
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +65 °C
