| Specifiche generali |
|---|
| Tipo di altoparlante |

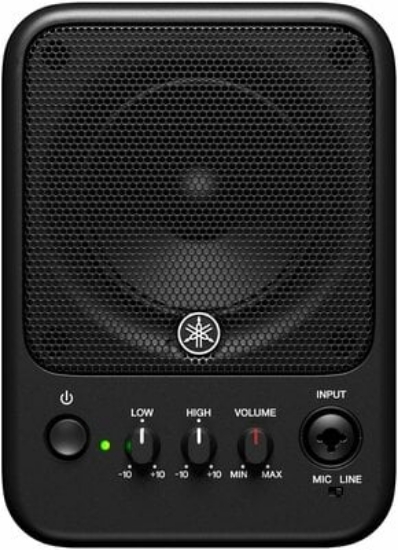

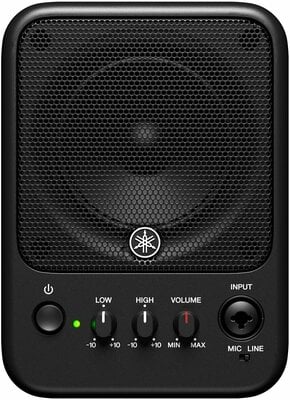

Altoparlante amplificato a gamma completa, tipo bass-reflex |
|---|
| Frequency range (-10dB) |
77 Hz–20 kHz |
|---|
| Maximum output level (1m; on axis) |
115 dB SPL *1 |
|---|
| Components | LF-HF |
4" Cone, 1" Voice coil, Ferrite magnet |
|---|
| Dimensions | W |
142 mm |
|---|
| H |
196 mm |
|---|
| D |
187 mm |
|---|
| Net weight |
2.1 kg (4.6 lbs) |
|---|
| Flying and mounting hardware |
Screw threads (bottom): 2 x M5 depth 11 mm pitch 60 mm (for 2, M5 x 6-10 mm screws), 1 x 3/8" depth 12 mm (for 1 x 3/8" x 9-11 mm screw) |
|---|
| Amplifier class |
Class-D |
|---|
| Power rating | Dynamic |
30 W |
|---|
| Continuous |
20 W |
|---|
| Cooling |
Natural cooling (no fan) |
|---|
| I/O Connectors | Mic Input |
[Front] INPUT: Combo, [Rear] INPUT LINE 1: Stereo Mini, INPUT LINE 2: Phone (TRS) |
|---|
| Line Out |
1 x Phone (TRS) |
|---|
| AC |
1 x AC inlet |
|---|
| Input impedance |
[Front] INPUT: LINE=5.4 kΩ / MIC= 5.4 kΩ, [Rear] INPUT LINE 1,2: 10 kΩ |
|---|
| Input sensitivity |
[Front] INPUT: LINE=-10 dBu / MIC=-40 dBu, [Rear] INPUT LINE 1, 2: -10 dBu (VOLUME: Maximum) |
|---|
| Input Level |
[Front] INPUT: LINE=+5 dBu / MIC=-25 dBu, [Rear] INPUT LINE 1, 2: +5 dBu (Livello di ingresso nominale / VOLUME: Center), [Front] INPUT: LINE=+20 dBu / MIC=-10 dBu, [Rear] INPUT LINE 1, 2: +20 dBu (livello di ingresso massimo) |
|---|
| Altri |
Controlli: 1 x VOLUME, 1 x CONTROLLO BASSO, 1 x CONTROLLO ALTO, POTENZA |
|---|
| Indicatori |
ALIMENTAZIONE (LED verde) |
|---|
| Consumo di energia |
1/8 Consumo energetico: 10 W, Consumo energetico inattivo: 3 W |
|---|
| Requisiti di alimentazione |
100 V - 240 V, 50/60 Hz |
|---|
| Opzioni |
Adattatore per asta microfonica BMS-10A, Morsetto ad angolo libero BAS-10, Staffa di montaggio a parete BWS20-190, Staffa a soffitto BCS20-150 / BCS20-210 |
|---|
